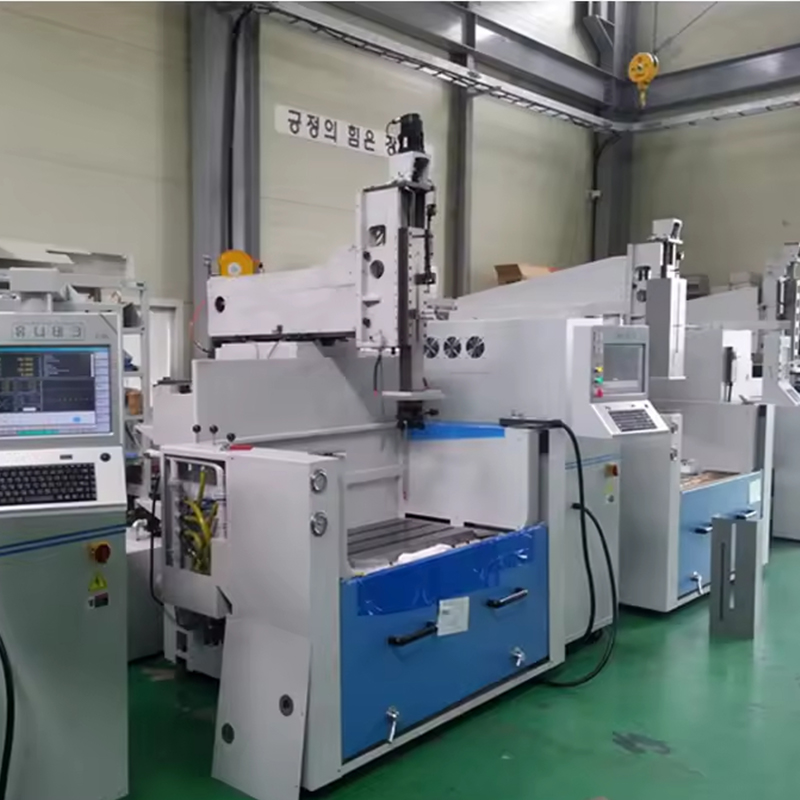

CNC-430 Small CNC Electrical Discharge Machine for Metal Mould Making

Application scenarios and scope of application
Micro-feature engraving in injection mold cavities
Blind hole machining for mold cooling channels
Detailed finishing on hardened alloy inserts
Prototype development for precision tooling

Description

Contact us

The CNC-430 is a computer-controlled electrical discharge machining system optimized for small-scale mold and die production. Its compact footprint suits workshops with limited space while maintaining full EDM capabilities for intricate metal shaping.



Product Features/Advantages
Modular Design: Facilitates ease of maintenance and component replacement.
Adaptive Control: Automatically adjusts electrical parameters to optimize machining efficiency.
User Interface: Equipped with an intuitive CNC system for streamlined operation and path programming.
Coolant Filtration: Integrated system reduces debris accumulation, extending electrode life.



Specification

Machine Type unit CNC430
Working table’s size mm 650×350
Travel(X,Y,Z) mm 400×350×300
The distance from the spindle under the nose to the working table mm 250 - 550
Oil tank inside diameter dimension mm 1030×640×400
Maximum electrode weight kg 100
Working table load kg 1000
Machine weight kg 2500
