Application scenarios and scope of application
This machine is used in mold manufacturing, aerospace components, and specialized tooling industries. It is effective for producing cavities, slots, and fine details in dies, turbine blades, and medical implants. The non-contact machining process eliminates mechanical stress, making it suitable for fragile or complex workpieces.
Description
Contact us

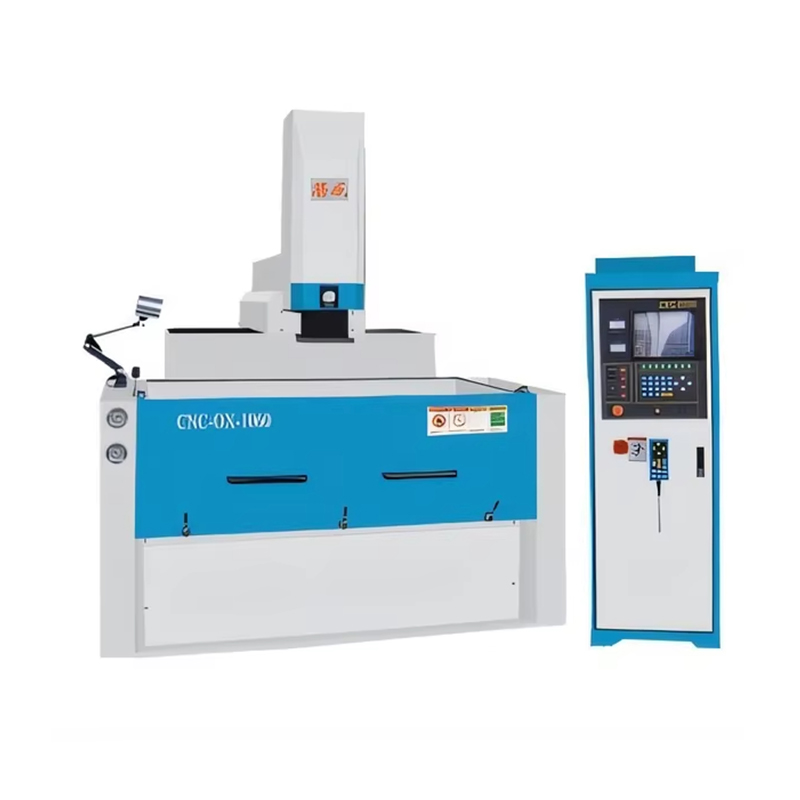

The CNC-OX650 3-Axis CNC EDM Machine Tool is designed for precision electrical discharge machining (EDM) applications. Equipped with a three-axis CNC system, it provides stable and efficient control over complex machining tasks. The machine is suitable for processing conductive materials, particularly hardened metals and alloys, where traditional cutting methods are ineffective. Its rigid construction and advanced discharge circuitry ensure consistent performance in industrial environments.
The CNC-OX650 integrates a high-response servo system and a user-friendly CNC interface, enabling precise control of machining parameters. The three-axis configuration supports linear interpolation for intricate geometries, while the automatic electrode wear compensation maintains dimensional accuracy. The machine features a submerged working tank to minimize thermal distortion and improve surface finish.
Product Features/Advantages
Three-axis CNC system with closed-loop feedback for positional accuracy.
Adaptive pulse generator for optimized material removal rates.
Submerged machining reduces arcing and improves debris removal.
Modular design simplifies maintenance and component replacement.
Compatible with graphite and copper electrodes for varied applications.
Specification
| Model | OX-430 (450) | OX-540 | OX-650 | OX-850 | OX-1060 | |
| Work surface size (mm) (length × width) | mm | 700×400 | 850×500 | 900×650 | 1100×650 | 1250×800 |
| Left and right travel (X axis) | mm | 450 | 500 | 600 | 850 | 1000 |
| Front and rear travel (Y axis) | mm | 350 | 400 | 450 | 500 | 600 |
| Spindle travel (Z axis) | mm | 300 | 300 | 400 | 400 | 500 |
| The distance from the lower end of the T-slot plate to the work surface | mm | 320-620 | 370-670 | 370-770 | 500-900 | 500-1000 |
| Oil tank inner cavity dimensions (length × width × height) | mm | 1200×700×440 | 1440×800×500 | 1616×950×550 | 1800×1100×600 | 2100×1250×600 |
| Fuel tank capacity | L | 703 | 828 | 1177 | 1340 | 1960 |
| Maximum electrode weight | mm | 100 | 120 | 150 | 200 | 400 |
| Workbench load-bearing | kg | 1000 | 1800 | 2500 | 3000 | 3500 |
| Machine weight | kg | 2500 | 3300 | 3500 | 4500 | 6500 |
| Unit price | yuan | 70000 | 83000 | 92000 | 104000 | 140000 |
