Application scenarios and scope of application

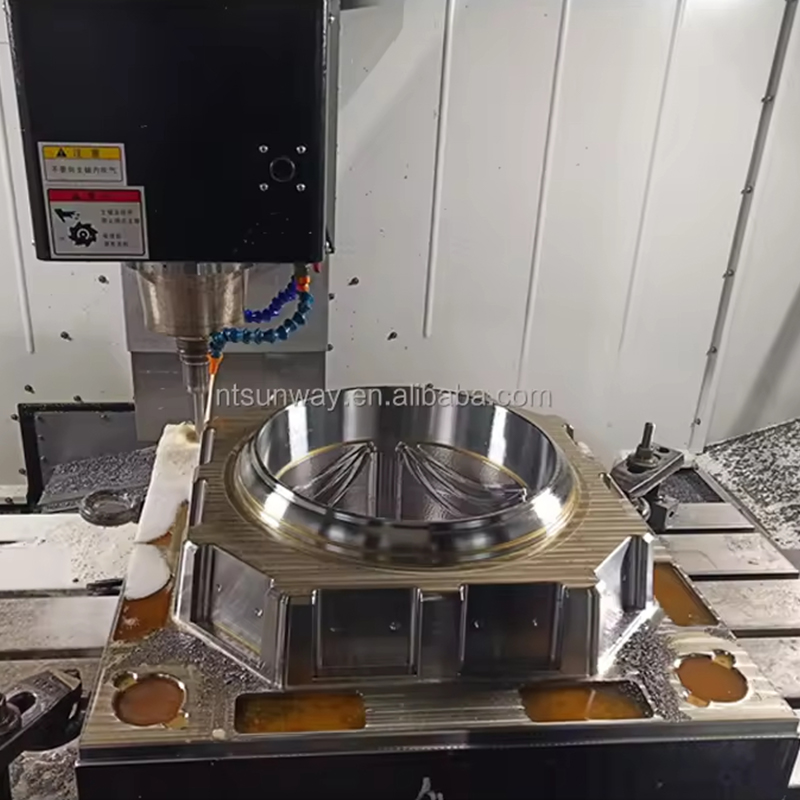

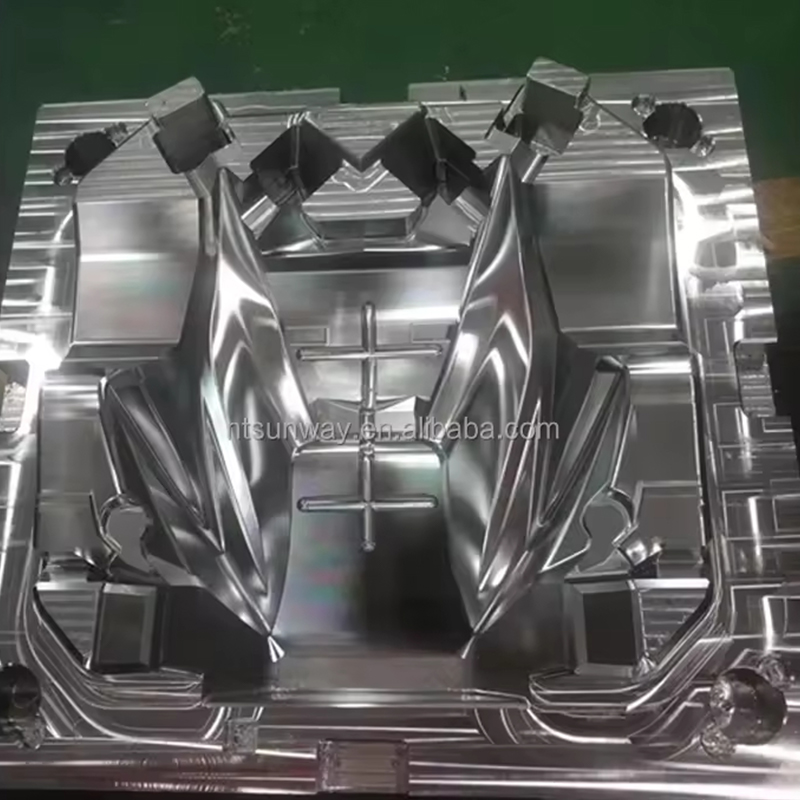

Designed for manufacturing medium to large components, this machine accommodates workpieces up to 1500 × 800 × 700 mm. Typical applications include production of industrial machinery components, transportation system parts, and heavy equipment fixtures across ferrous and non-ferrous materials.
Description
Contact us
The VMC-1580 is a rigid-frame vertical machining center engineered for demanding milling applications. Its reinforced construction and precision drive systems ensure stable material removal rates across extended production cycles.
Product Features/Advantages

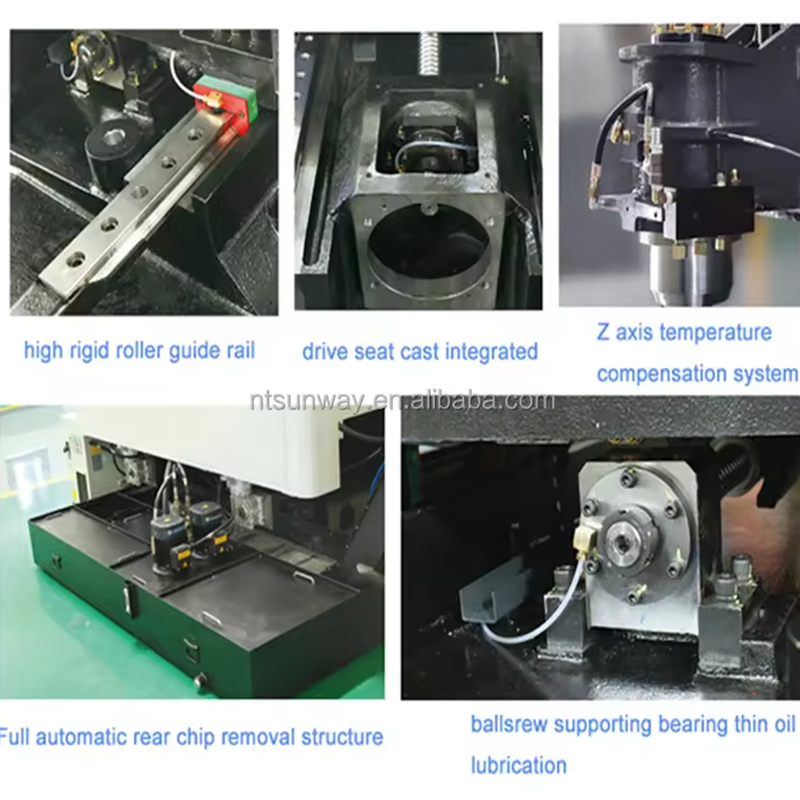

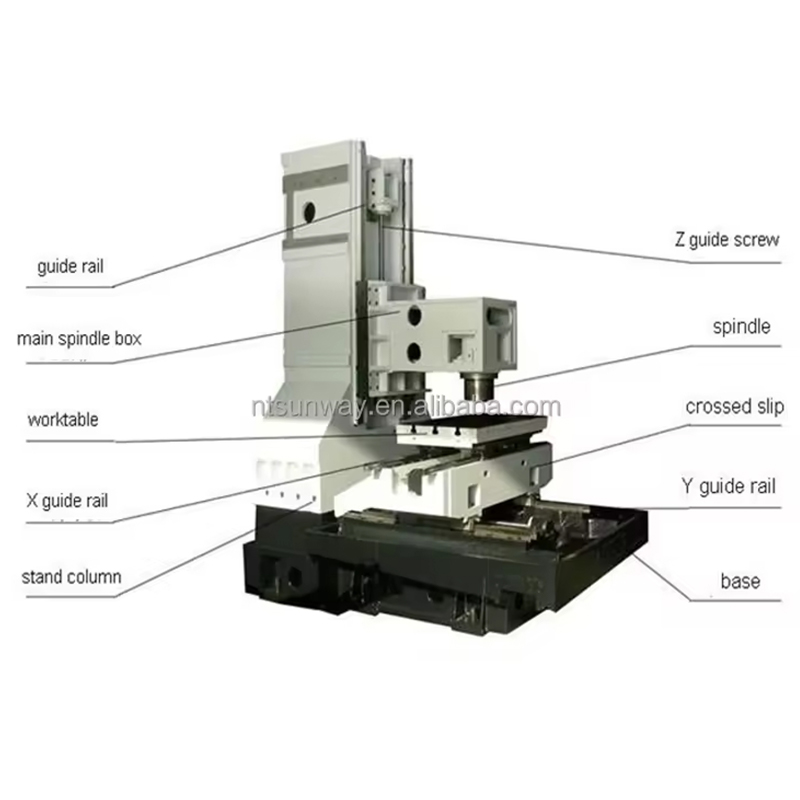

Structural Integrity: Monolithic castings with wide-span guideways enhance vibration damping during aggressive cutting
Drive Performance: Servo motor-driven axes with box-type slideways maintain positioning consistency under heavy loads

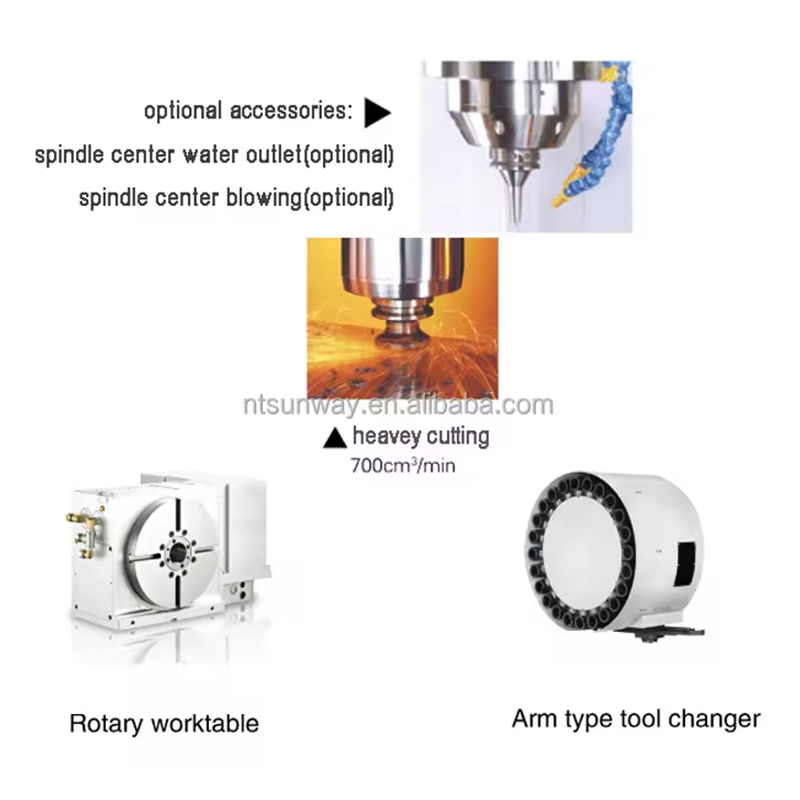

Spindle Configuration: 15,000 rpm direct-drive spindle with through-spindle coolant capability
Process Automation: Integrated chip conveyor and programmable coolant nozzles support unattended operation
Control Interface: Industry-standard CNC platform with adaptive feedrate control for optimal surface finishes
Specification
| Product model | VMC650 | VMC850L | VMC1160L | VMC1370 | VMC1580 | VMC1890 | unit | |
| Workbench | Workbench dimensions | 700X420 | 1000X500 | 1200X600 | 1400X700 | 1700X800 | 2000X900 | mm |
| Workbench load-bearing | 500 | 400 | 800 | 1100 | 1200 | 2500 | Kg | |
| T - slot width | 3-18 | 5-18 | 5-18 | 5-18 | 7-18 | 5-22 | mm | |
| Processing range | X-axis travel | 600 | 800 | 1100 | 1300 | 1500 | 1800 | mm |
| Y-axis travel | 420 | 500 | 600 | 700 | 800 | 900 | mm | |
| Z-axis travel | 500 | 500 | 600 | 700 | 700 | 750 | mm | |
| Distance from spindle end face to worktable | 80 - 580 | 150 - 650 | 120 - 720 | 110 - 810 | 250 - 950 | 120 - 870 | mm | |
| Spindle | taper hole model | BT40 | BT40/φ150 | BT40/φ150 | BT40/φ150 | BT50/φ155 | BT50/φ155 | |
| Pull nail specification | 45° | 45° | 45° | 45° | 45° | 45° | ||
| Maximum speed | 8000 | 8000 | 8000 | 8000 | 6000 | 6000 | rpm | |
| Spindle motor power | 7.5 | 7.5 | 11/15 | 11/15 | 15/18.5 | 22/26 | KW | |
| feeding | Cutting feed speed range | 10 - 12000 | 10 - 10000 | 10 - 10000 | 10 - 10000 | 10 - 10000 | 10 - 10000 | mm/min |
| X-axis rapid movement | 24000 | 48000 | 36000 | 30000 | 20000 | 18000 | mm/min | |
| Y-axis rapid movement | 24000 | 48000 | 36000 | 30000 | 20000 | 18000 | mm/min | |
| Z-axis rapid movement | 24000 | 48000 | 36000 | 30000 | 15000 | 15000 | mm/min | |
| Accuracy | Positioning accuracy | 0.008 | 0.008 | 0.008 | 0.012 | 0.012 | 0.012 | mm |
| Repeatability | 0.005 | 0.005 | 0.005 | 0.008 | 0.008 | 0.008 | mm | |
| System configuration | control system | New generation system 21 bus, Japanese Mitsubishi M80, or FANUC | ||||||
| size | 2330X2200X2490 | 2700X2300X2600 | 3500X2700X2650 | 3900X3060X3080 | 4260X3545X3300 | 4500X3400X3350 | mm | |
| weight | 4.5 | 6 | 7 | 8.5 | 15 | 16.5 | T | |
