Application scenarios and scope of application

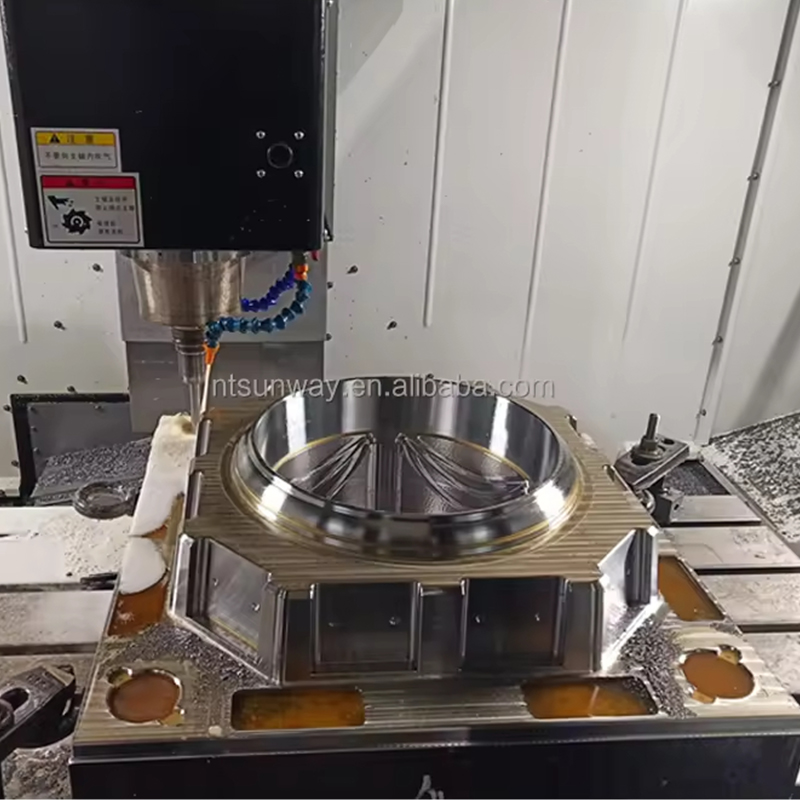

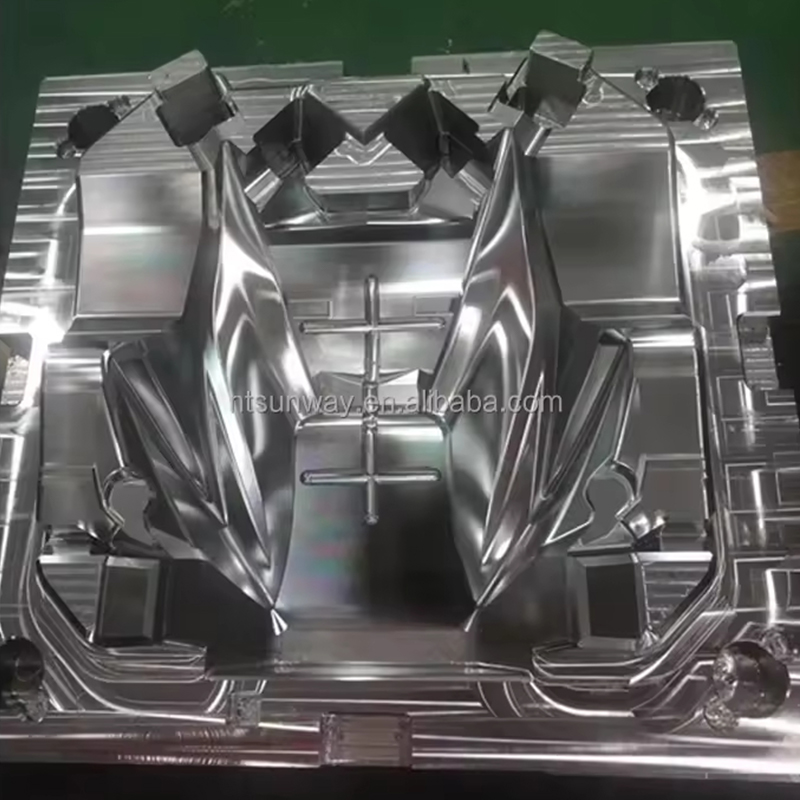

This machining center handles complex contour milling, precision boring, and repetitive batch production tasks across ferrous and non-ferrous materials. The machine’s configuration supports fixture-intensive workpieces and multi-sided machining operations common in mold manufacturing and structural component fabrication.
Description
Contact us
The VMC-1370 is a heavy-duty vertical machining center engineered for demanding metal-cutting applications. Its rigid, hard-line construction ensures stability during aggressive machining, while optimized thermal deformation resistance maintains consistency over extended operation cycles.

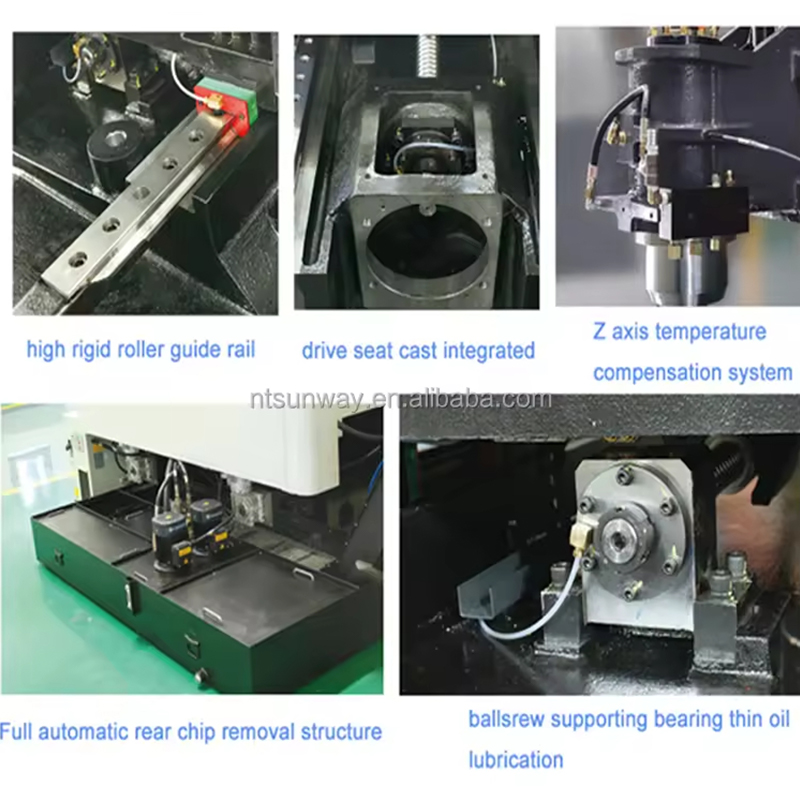

Product Features/Advantages

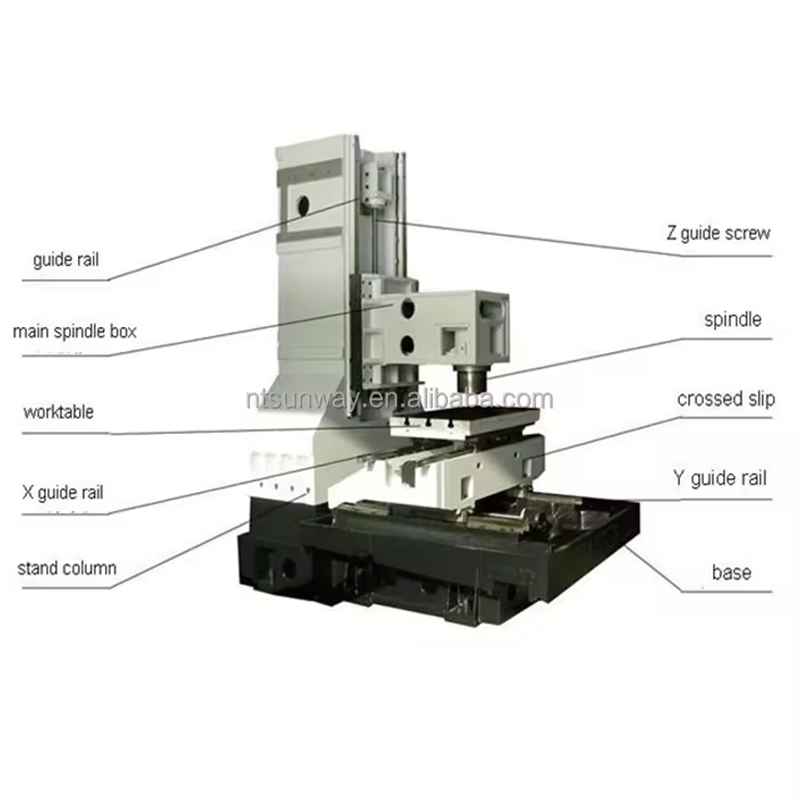

Structural Integrity: Monolithic base and column design with reinforced ribbing for vibration dampening
Spindle Performance: Direct-drive spindle with balanced torque distribution across speed ranges
Axis Configuration: Three linear axes with pre-tensioned ball screws for reduced backlash
Process Reliability: Automatic tool compensation and spindle thermal stabilization features
Workspace Optimization: Enlarged machining envelope with accessible tool change positions
The VMC-1370’s design prioritizes operational stability and process repeatability, addressing the needs of modern machine shops requiring consistent output in challenging materials. Its balanced stiffness-to-weight ratio facilitates both heavy roughing and fine finishing operations without compromising positioning stability.
Specification
| Machine Type | Unit | VMC1370(hard rail) |
| Worktable | ||
| Worktable(length×width) | mm | 1500×700 |
| Maximum load of the table | kg | 1200 |
| T-slot(number of slot × slot width × pitch) | mm | 5-18×140 |
| Triaxial itinerary | ||
| Travel for X/Y/Z axes | mm | 1300/700/650 |
| Distance from spindle nose to table surface | mm | 100-750 |
| Distance from spindle center to column guide surface | mm | 820 |
| Feed system | ||
| CNC system | Mitsubishi M70/FANUC-Oi MD | |
| Rapid shift of axes of X/Y/Z | m/min | 16 |
| Maximum cutting feed speed | m/min | 7 |
| Automatic tool transform system(CNC milling without) | ||
| Standard tool quality | bundle | Disc type 24 |
| The largest diameter cutter knife/length | mm | Φ110/300 |
| Tool exchanging manner | Air-operated | |
| Average tool exchanging time | sec | Disc type: 5s |
| Precision | ||
| Positioning accuracy | mm | 0.012 |
| Accuracy of repeated positioning | Mm | 0.006 |
| Spindle system | ||
| Spindle speed | r.p.m | 6000 |
| Spindle specifications(model/installation diameter) | BT50/Φ155 | |
| Drive manner of the spindle | Belt drive | |
| Motor power of the spindle | kw | 15/18.5 |
| Air pressure | ||
| Requirements for air compressing | Kg/cm² | ≥6 |
| Air pressure flux | m³/min | ≥0.3 |
| Machine specifications | ||
| Integrated weight(kg) | kg | 10500 |
| Overall dimension(weight×width×height) | mm | 3900×3060×2650 |
