Application scenarios and scope of application
This machine is suitable for industries requiring precise metalworking, including aerospace components, automotive parts, and industrial mold manufacturing. It accommodates large workpieces and supports multi-axis operations, making it adaptable for both prototyping and batch production.
Description
Contact us

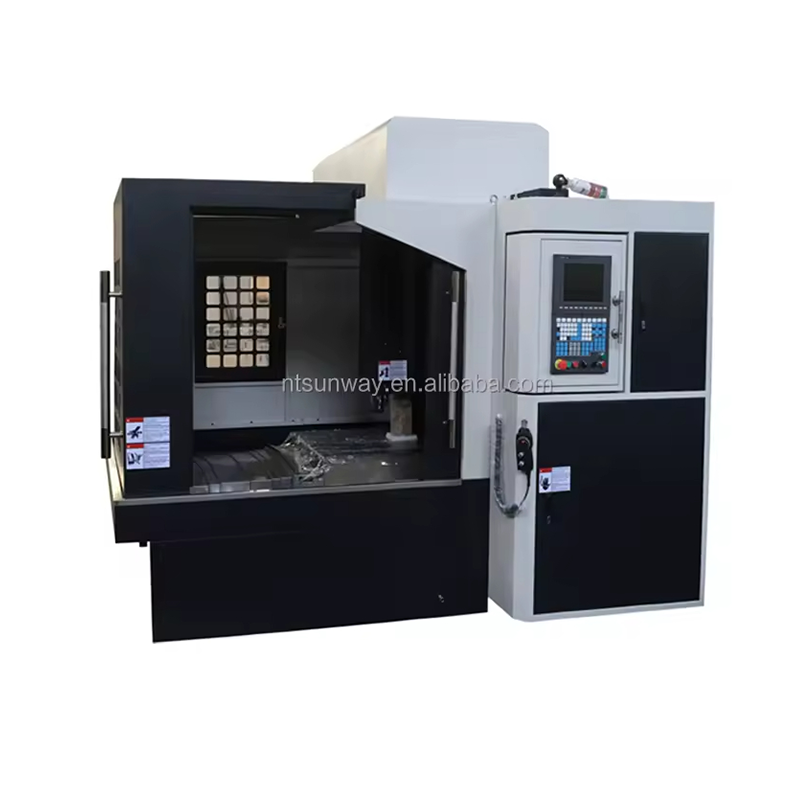

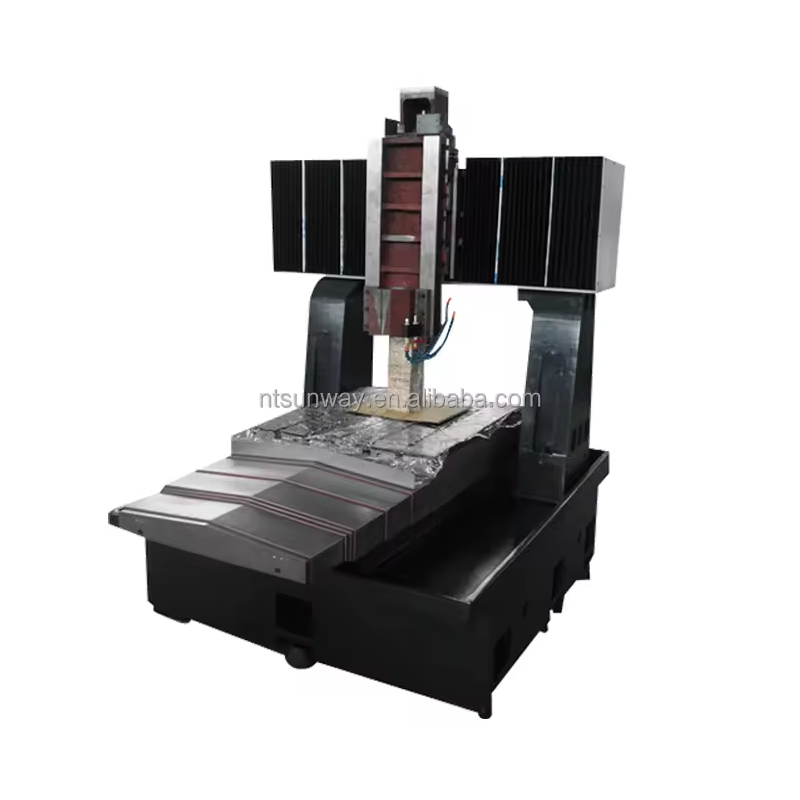

The DX-1080 Metal Stainless Steel Cast Iron Processing Material Gantry CNC Engraving and Milling Machine Center is designed for heavy-duty machining applications. Its rigid gantry structure ensures stability when processing hard metals such as stainless steel and cast iron. Equipped with a high-torque spindle and an advanced CNC system, the machine delivers consistent performance for complex engraving and milling tasks.
Product Features/Advantages

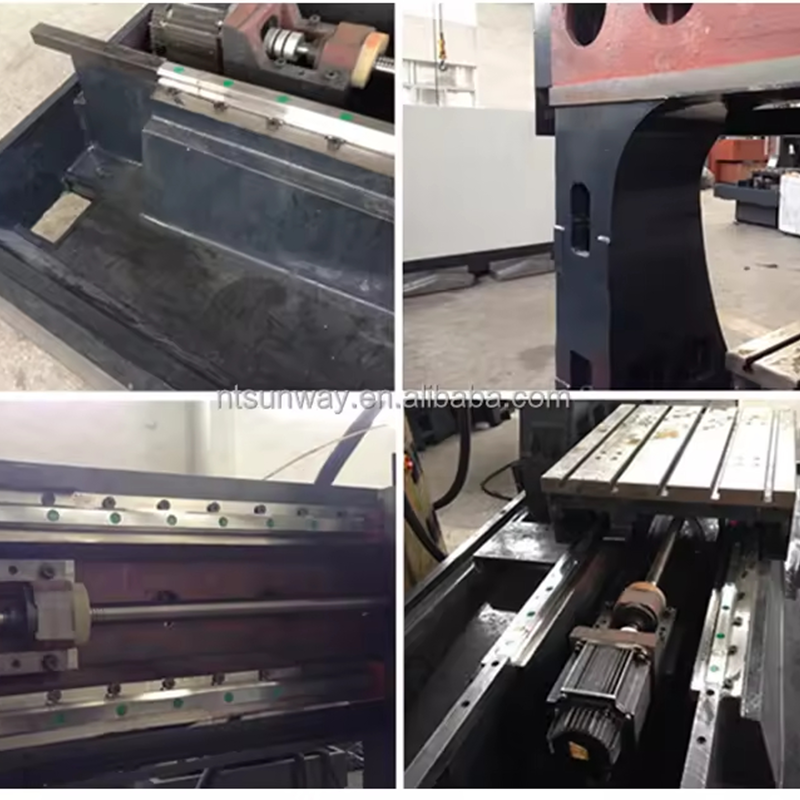

Robust Construction: The reinforced gantry frame minimizes vibration during high-load machining.
Versatile Spindle Options: Compatible with various spindle configurations to handle different material hardness levels.
Efficient Cooling System: Integrated cooling mechanisms reduce thermal deformation during prolonged operation.
User-Friendly Interface: The CNC system supports standard programming formats and offers real-time monitoring.
Specification
| model | DX-4040 | DX-5050 | DX-6060 | DX-7580 | DX-1080 |
| Workbench area (length × width) (mm) | 400×400 | 550×500 | 650×550 | 800×700 | 1000×750 |
| T-slot number (mm) | 5-14 | 5-14 | 5-14 | 5-14 | 5-18 |
| Spindle speed (r/min) | 3000~ 24000 | 3000~24000 | 3000~ 24000/21000 | 3000~24000/18000 | 3000~24000/18000 |
| Spindle output power (KW) | 1.6/2.2 | 3.2 | 3.2/4 | 4/5.5 | 4/5.5/7.5 |
| Spindle (Tool diameter range circumference) | φ3-φ12 | φ3-φ12 | φ3-φ12 | φ3-φ12/16 | φ3-φ12/ 16-φ20 |
| Three-axis travel (XYZ axis) (mm) | 450×400×200 | 500×500×250 | 600×600×250 | 750×800×300 | 800×1000×300 |
| Minimum distance from spindle to table (mm) | 30 | 60 | 60 | 60 | 60 |
| Gantry passage height (mm) | 230 | 310 | 310 | 360 | 360 |
