How many controls are in a CNC machine?

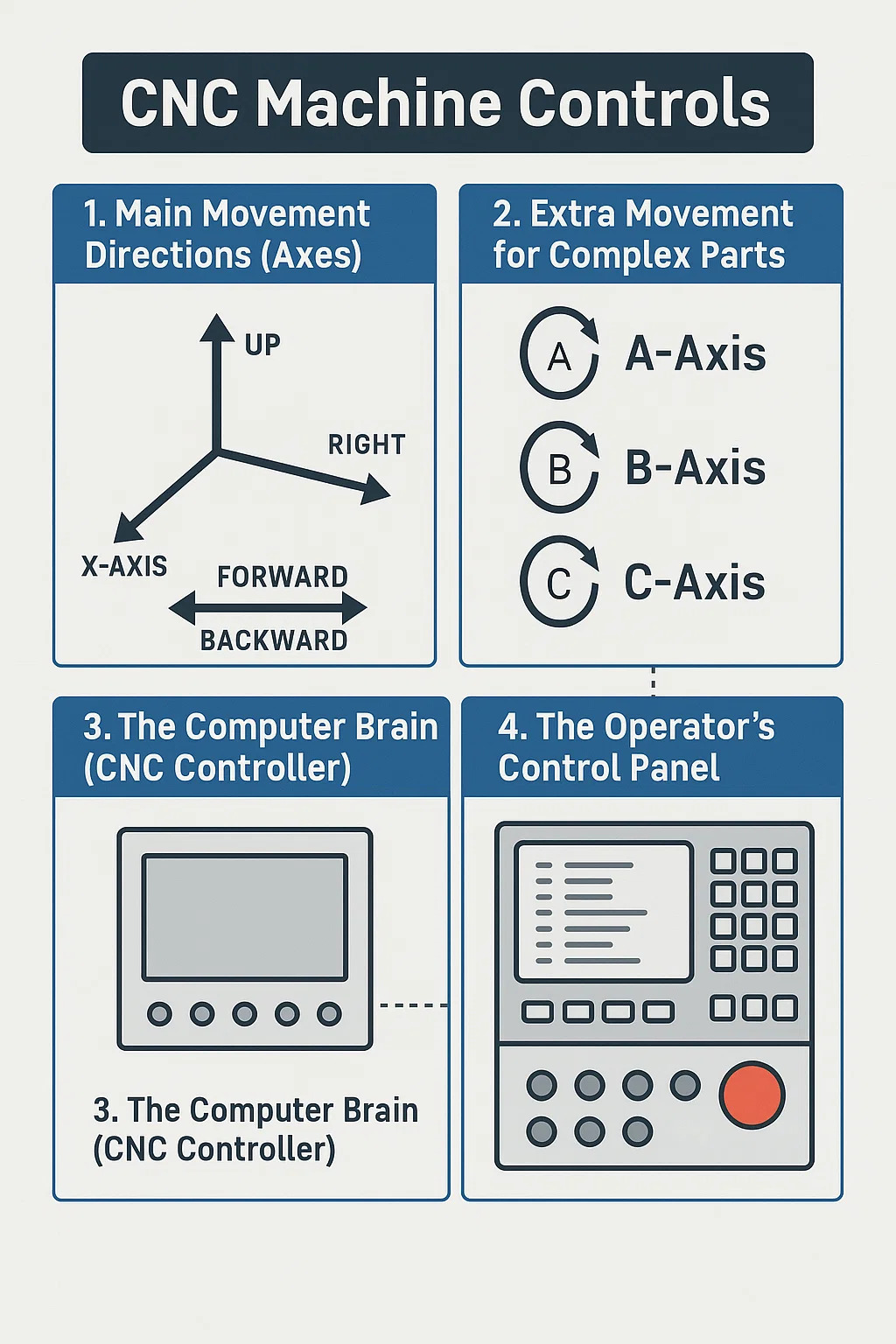

Here's how the controls work on a typical CNC machine, broken down simply:

1.The Main Movement Directions (Axes): This is the core of CNC machine control.

•Think of these as the basic directions the cutting tool or the workpiece can move.
•X-Axis: Controls left and right movement (usually the longest travel).
•Y-Axis: Controls forward and backward movement.
•Z-Axis: Controls up and down movement (often where the spindle or cutting tool moves vertically).
•A basic CNC machine (like a simple router or mill) has these three main controls (X, Y, Z).

2.Extra Movement for Complex Parts:

•More advanced CNC machines add rotational controls to those basic three.
•A-Axis: Rotation around the X-axis line.
•B-Axis: Rotation around the Y-axis line.
•C-Axis: Rotation around the Z-axis line (common on CNC lathes for positioning tools or live tooling).
•A 4-axis CNC machine adds one rotational axis (often A or B) to the basic X,Y,Z.
•A 5-axis CNC machine adds two rotational axes (usually A and B) to X,Y,Z, allowing the tool to approach the workpiece from almost any angle. This is common on high-end CNC machining centers.

3.The Computer Brain (CNC Controller):

•This isn't a "control" you physically move, but the electronic unit running the whole show.
•It reads the programmed instructions (G-code) and sends signals to the motors driving each axis. It tells the CNC machine when and how far to move along X, Y, Z, A, B, or C.

4.The Operator's Control Panel:

•This is where the person interacts with the CNC machine.
•It includes the screen showing the program and machine status.
•It has buttons and knobs for:
•Starting and stopping the program.
•Moving the axes manually (often called "jogging").
•Loading programs.
•Setting up the machine (like telling it where the tool is).
•Emergency stop button (a very important control!).
